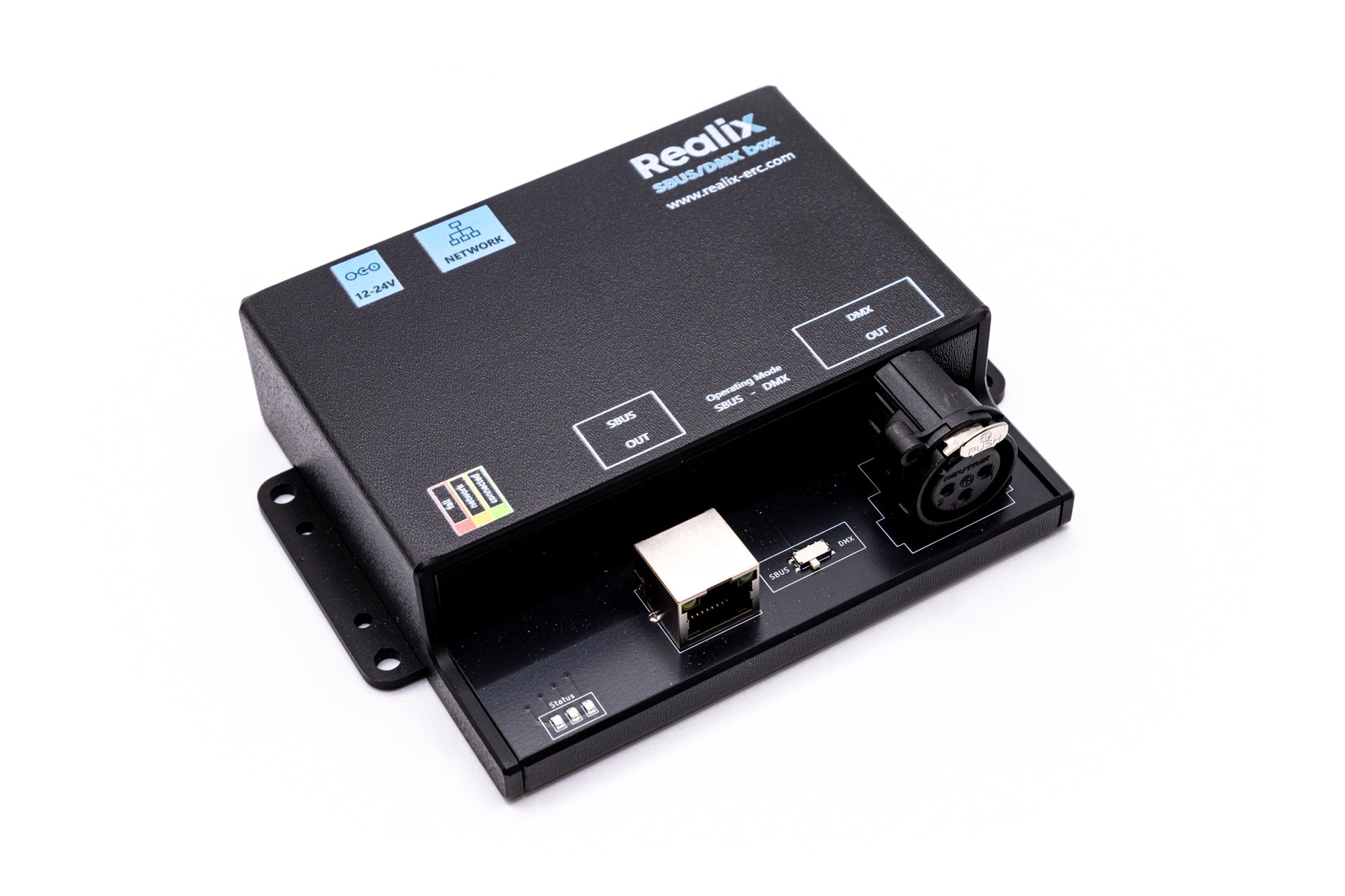

The Realix SBUS/DMX Box can operate either as an SBUS Box or as a DMX Box, selected with a simple switch on the device.
In SBUS mode, the Box connects and powers up to 16 Realix Pods using standard Ethernet cables. Both data and power (12V-24V DC) run over the same line, keeping installation simple and scalable. Pods are automatically recognized by the ERC system, and multiple units can be daisy-chained up 25m at 12V to 100 m at 24V.
In DMX mode, the Box provides one full DMX universe (512 channels) to control DMX-compatible lighting and effects such as dimmers, strobes, and color changers. If more channels are needed, additional Boxes can be added, each automatically discovered in the ERC Designer.
Key details:
Operates as SBUS Box or DMX Box (note: if you want to use both SBUS and DMX, you need two boxes).
SBUS mode: powers and connects up to 16 Pods via Ethernet cabling.
DMX mode: 512 DMX channels for lighting and effects.
Requires a stabilized power adapter
recommended for SBUS usage: 24 V / 1.5 A.
recommended for DMX usage: 12V / 0.75A.
Requires the Realix Server software to function.
Auto-discovery ensures fast and easy setup in the ERC system.
Note: Although SBUS uses RJ45 connectors, it is not Ethernet. Only connect Realix Pods to the SBUS port.
The SBUS/DMX Box is the essential hub to connect and control your escape room hardware and effects.
