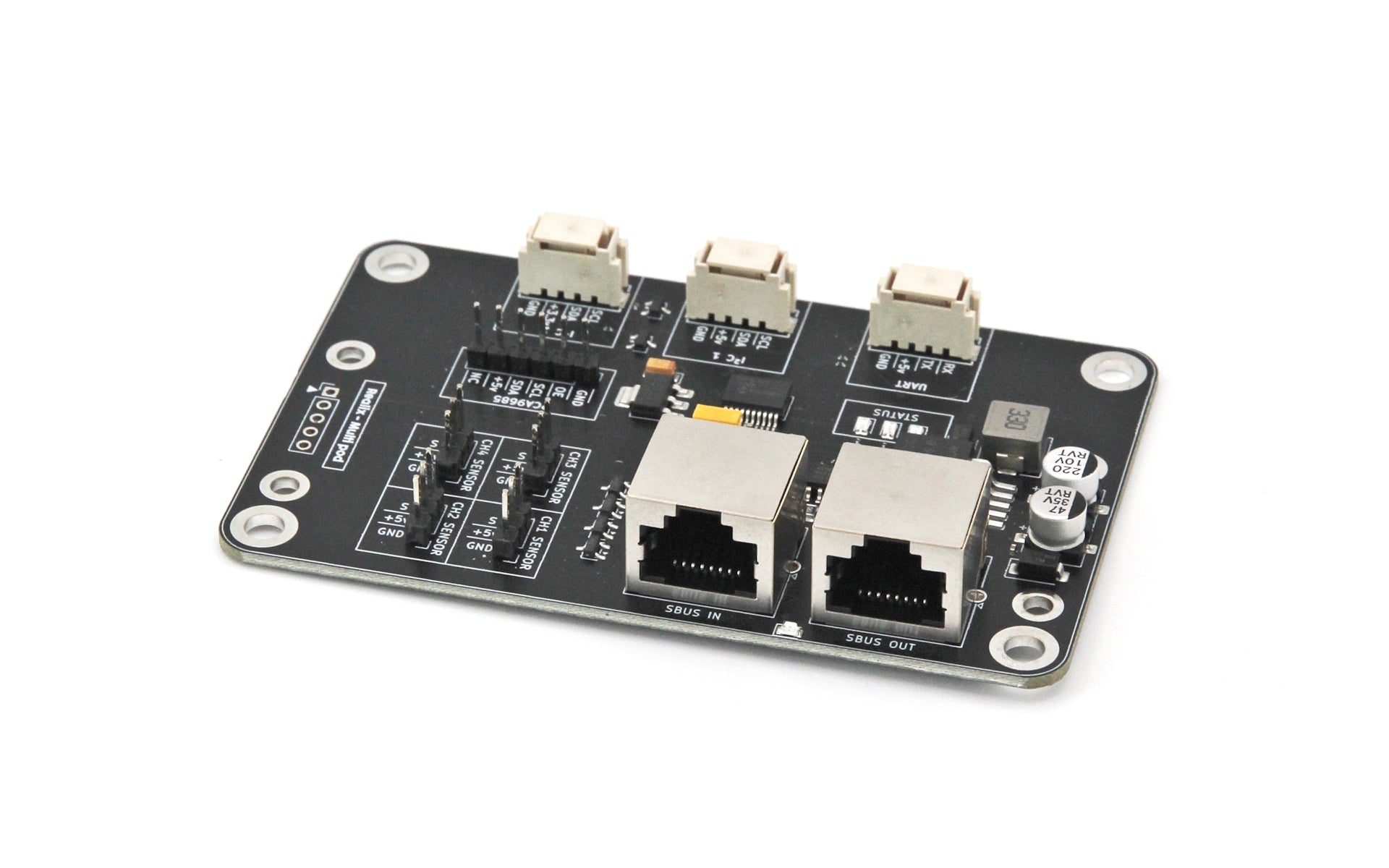

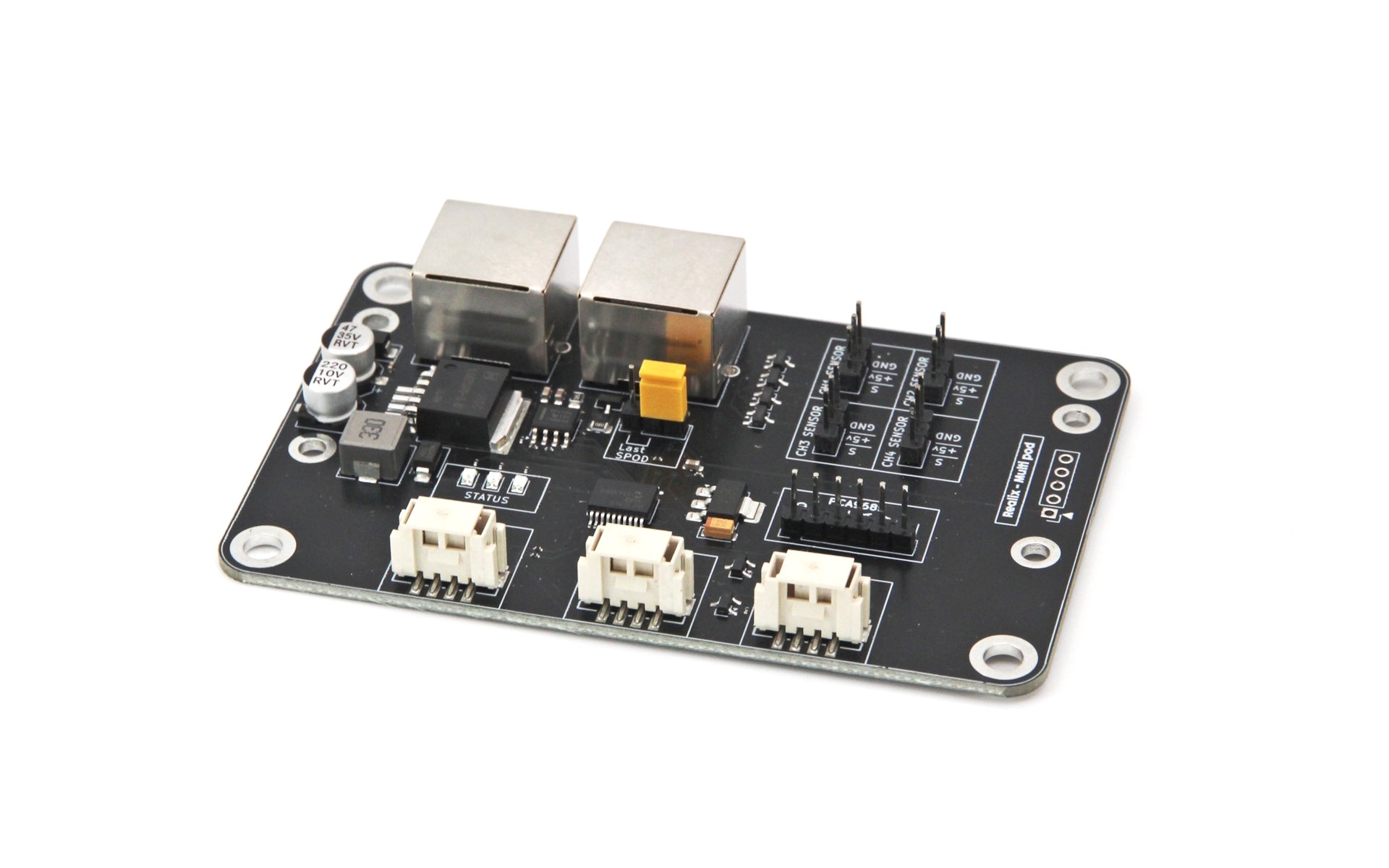

The Realix Multi Pod is a module that adds inputs and outputs to your escape room puzzles. It connects to the SBUS, is powered directly through the Ethernet cable by the SBUS Box, and is automatically recognized by the system.
Each Pod offers:
4 configurable input channels – each can be used as a digital input (for switches, push buttons, or relays with dry contact or 0–5 V signals) or as an analog input (Gravity layout, 0–5 V).
Versatile smart connectors
1 grove I2C connectors 3.3V
1 grove I2C connector 5V
1 PCA9685 servo driver connector 5V
1 grove serial connector 5V
Multiple Pods can be connected in a daisy chain using standard Ethernet cables, reducing wiring effort and keeping installation clean and scalable. The Multi Pod can also be mounted on a DIN-rail using standard DIN-rail adapters, making it easy to integrate into technical setups.
Important: The Multi Pod always have the 4 inputs available but depending which sensor or control item you want to connect to one of the 4 smart connectors you need to choose which firmware you want to have it delivered with. Currently there are 3 firmware versions:
Multi Pod - Sensor
Multi Pod - Servo
Multi Pod - Interact
Make this choice in a comment of this order or by a separate e-mail to support@realix-erc.com
Sold out
